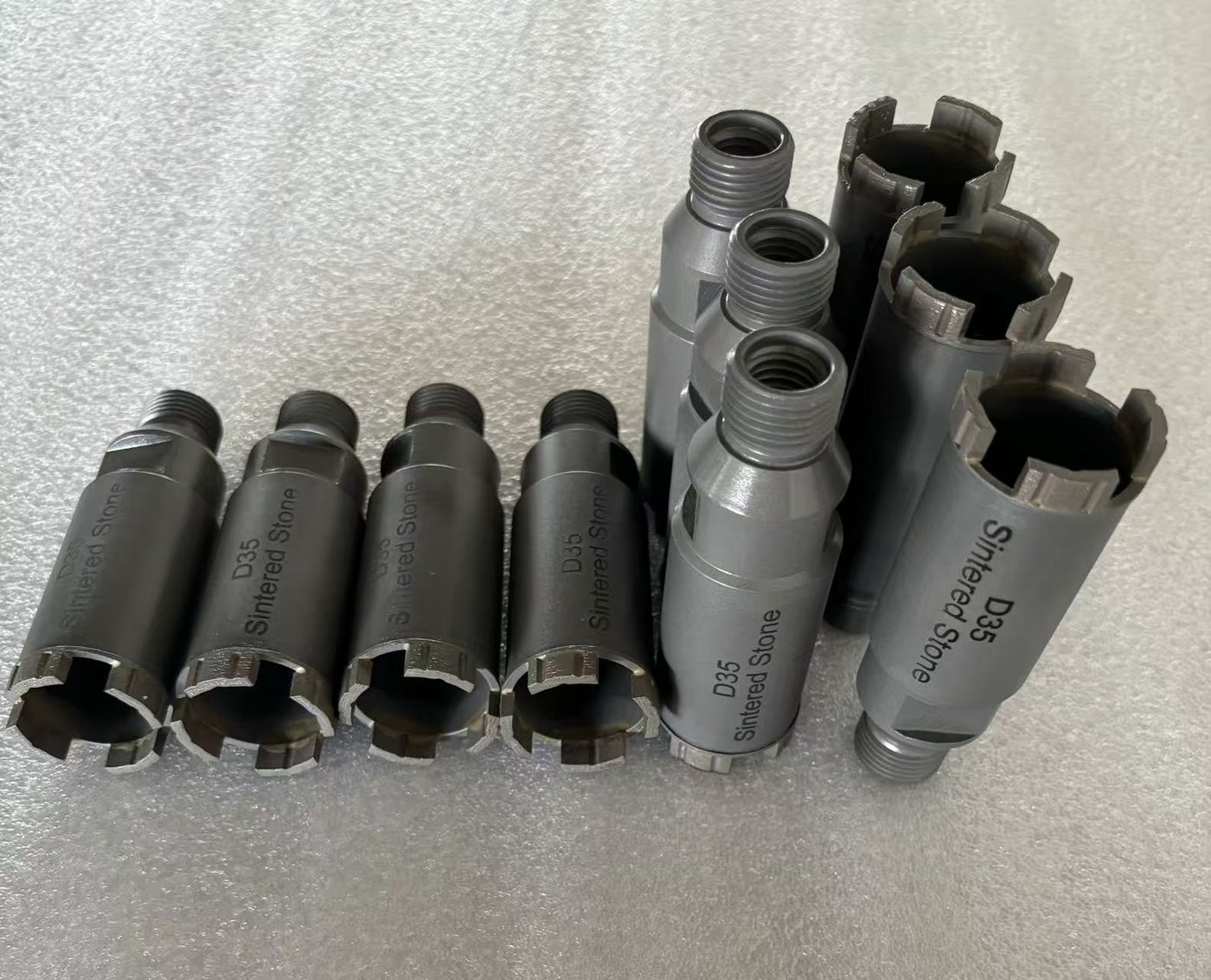

CNC Wet Thin-Wall Crown / Wavy Tooth Diamond Core Drill Bit for Dekton® & Sintered Stone

Product Overview

Our CNC Wet Thin-Wall Crown / Wavy Tooth (波纹齿) Diamond Core Drill Bits are specially designed for precision hole drilling and cutting on Dekton®, sintered stone, ultra-compact surfaces, porcelain slabs and other hard engineered stone materials. The crown / wavy tooth cutting head is intended for applications that need an ultra-thin cutting profile and reduced material removal.

Designed for CNC wet cutting applications, these diamond core bits feature a thin-wall diamond cutting head that helps reduce cutting resistance and improve drilling efficiency.

The standard version is manufactured with an approximately 3mm thin wall. For applications requiring an ultra-thin cutting profile, the crown-tooth version can be manufactured with a wall thickness down to approximately 2mm.

Available with either a 1/2" GAS or M14 connection, these CNC diamond core bits can be manufactured in diameters from 5mm to 300mm according to customer requirements.

We provide customized and OEM diamond core bits for stone fabricators, countertop manufacturers, CNC tooling distributors, wholesalers, importers and professional stone processing companies.

Key Features

• Specially designed for CNC wet cutting
• Ideal for Dekton® and sintered stone
• Suitable for ultra-compact surfaces and porcelain slabs
• Thin-wall diamond cutting design
• Standard approximately 3mm thin wall
• Crown-tooth version available down to approximately 2mm
• Continuous diamond rim available
• 1/2" GAS and M14 connections available
• Diameter range from 5mm to 300mm
• Custom sizes and specifications available
• OEM and private-label manufacturing available
• Suitable for professional stone fabrication applications

Designed for Dekton® & Sintered Stone

Dekton®, sintered stone and other ultra-compact surfaces are extremely hard and dense materials that require specialized diamond tooling for efficient and controlled drilling.

Our CNC Wet Thin-Wall Diamond Core Drill Bits are developed specifically for professional stone fabrication applications where accurate hole dimensions, smooth cutting performance and controlled material removal are important.

The thin-wall diamond cutting head reduces the amount of material removed during drilling and helps minimize cutting resistance. This makes the tool particularly suitable for CNC wet drilling applications where cutting efficiency and hole accuracy are critical.

The standard version uses an approximately 3mm thin wall. For customers requiring an even thinner cutting profile, the crown-tooth version can be manufactured with a wall thickness down to approximately 2mm.

Cutting Head Options

Continuous Rim Diamond Core Bit

The continuous rim version features a continuous diamond cutting edge designed for smooth and controlled drilling of Dekton®, sintered stone, porcelain slabs and other hard and brittle materials.

The standard continuous rim version is manufactured with an approximately 3mm thin wall, providing a practical balance between cutting efficiency, cutting stability and tool strength.

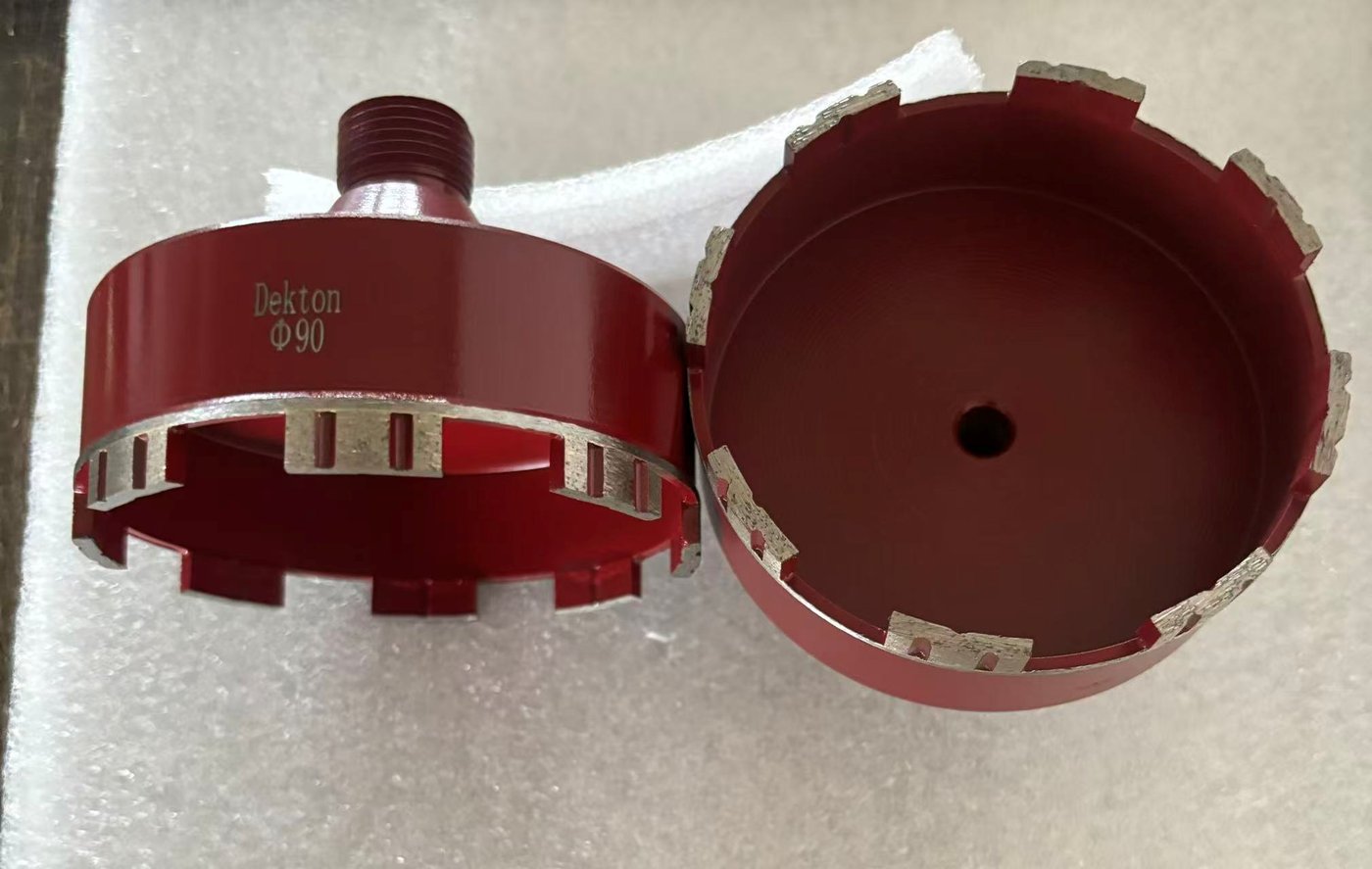

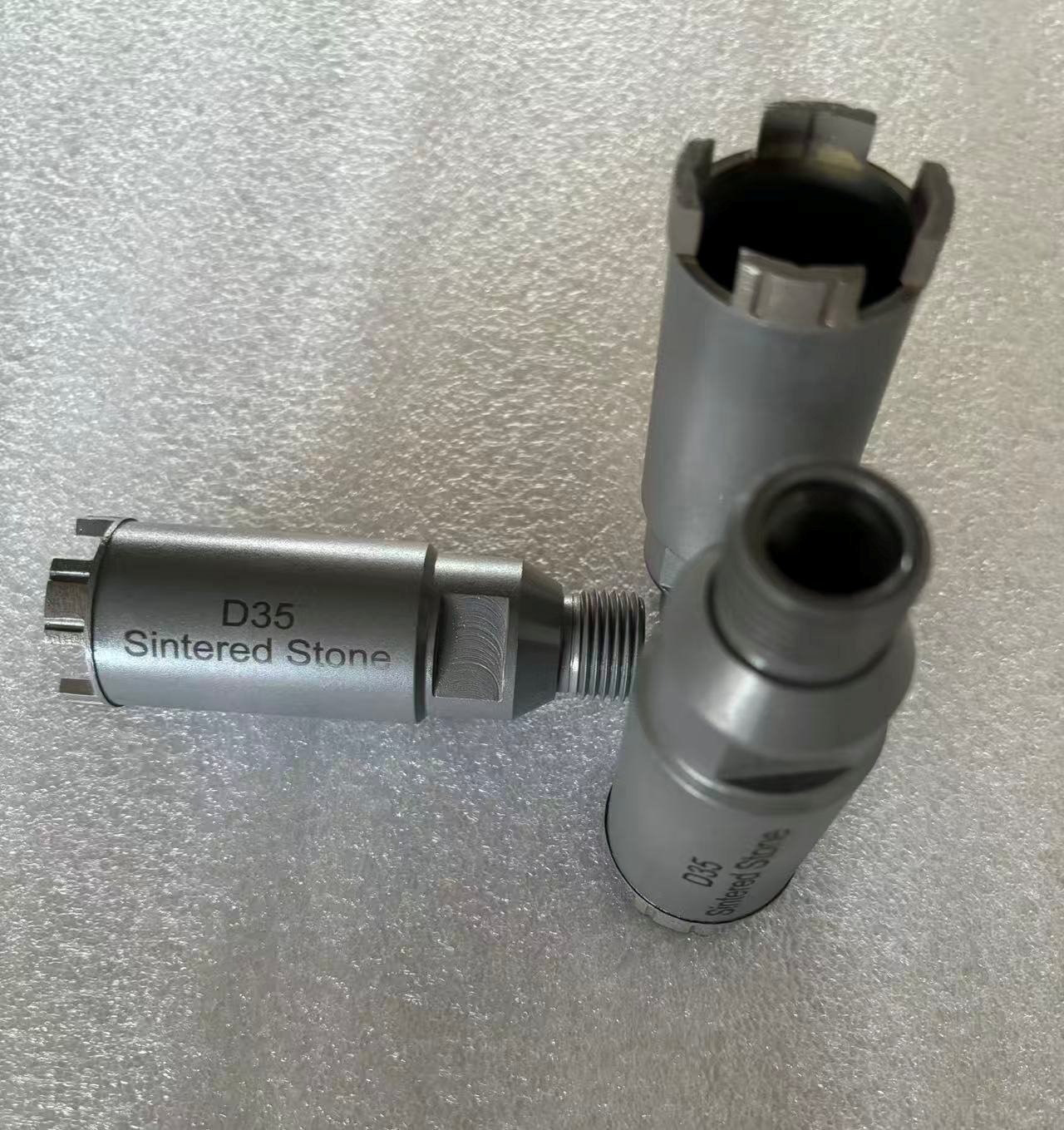

Crown-Tooth Diamond Core Bit

The crown-tooth version is designed for applications requiring an ultra-thin cutting profile.

The wall thickness can be manufactured down to approximately 2mm, depending on the diameter and application requirements.

A thinner wall can reduce material removal during drilling, but the manufacturing process becomes more demanding as the wall thickness decreases. Therefore, the 2mm crown-tooth version requires higher manufacturing precision and normally has a higher production cost than the standard 3mm version.

Thin-Wall Design

The standard thin-wall diamond core bit is approximately 3mm thick.

For applications requiring a thinner cutting profile, the crown-tooth design can be manufactured with a wall thickness down to approximately 2mm.

The appropriate wall thickness can be selected according to the required hole diameter, material, CNC machine, cutting conditions and application requirements.

A 3mm wall provides a good balance between cutting efficiency, tool strength and manufacturing cost, while the approximately 2mm crown-tooth design is intended for applications where an ultra-thin cutting profile is required.

Available Connections

1/2" GAS Connection

The 1/2" GAS version is available for CNC machines and tool holders using a 1/2" GAS connection.

M14 Connection

The M14 version is available for CNC equipment and tooling systems using an M14 connection.

If you are not sure which connection is suitable for your CNC machine, send us your machine model, tool holder specification, drawing or a photo of your existing core bit. We can help confirm the appropriate connection before production.

Diameter Range: 5mm–300mm

We can manufacture CNC wet diamond core bits in diameters from 5mm to 300mm.

Small diameters are suitable for precision holes and smaller fabrication applications, while larger diameters can be used for countertop, sink, faucet, plumbing and other large-format hole cutting applications.

Custom diameters are available according to customer drawings, samples or specifications.

Suitable Materials

• Our CNC Wet Thin-Wall Diamond Core Drill Bits are suitable for:
• Dekton®
• Sintered stone
• Ultra-compact surfaces
• Porcelain slabs
• Large-format porcelain
• Engineered stone
• Ceramic slabs
• Crystallized glass
• Other hard and brittle slab materials

Applications

• Our CNC wet diamond core bits are suitable for:
• CNC hole drilling
• CNC wet drilling
• Dekton® slab fabrication
• Sintered stone fabrication
• Porcelain slab processing
• Countertop fabrication
• Kitchen countertop production
• Faucet hole drilling
• Sink hole drilling
• Plumbing holes
• Tap holes
• Electrical and utility holes
• Custom CNC hole cutting
• Stone fabrication
• Large-format slab processing

Product Specifications

Specification

Details

Product Type

CNC Wet Thin-Wall Diamond Core Drill Bit

Main Application

CNC Wet Hole Drilling and Cutting

Primary Materials

Dekton®, Sintered Stone, Porcelain Slabs & Ultra-Compact Surfaces

Cutting Head

Continuous Rim / Crown-Tooth

Standard Wall Thickness

Approximately 3mm

Ultra-Thin Wall Option

Down to approximately 2mm with Crown-Tooth Design

Available Diameters

5mm–300mm

Available Connections

1/2" GAS / M14

Cutting Method

Wet Cutting

Machine

CNC Stone Fabrication Machine

Customization

Available

OEM / ODM

Available

3mm Standard Thin Wall vs. 2mm Crown-Tooth

3mm Standard Thin Wall

The approximately 3mm thin-wall design provides a good balance between cutting efficiency, tool strength, manufacturing difficulty and cost.

It is suitable for many CNC wet drilling applications on Dekton®, sintered stone, porcelain slabs and other hard engineered stone materials.

2mm Crown-Tooth Thin Wall

The approximately 2mm version is designed for applications requiring a thinner cutting profile and reduced material removal.

Because the thinner the wall, the more difficult the manufacturing process becomes, the 2mm crown-tooth version requires higher manufacturing precision and tighter control during production.

As a result, the 2mm version normally has a higher manufacturing cost than the standard 3mm version.

Wet Cutting Performance

This CNC diamond core drill bit is designed primarily for wet cutting applications.

Water cooling helps control heat generated during drilling and supports stable cutting performance during CNC machining.

The appropriate cutting parameters should be selected according to the material, core bit diameter, CNC machine, spindle speed, feed rate, cooling conditions and diamond specification.

Customized Diamond Specifications

Different types of Dekton®, sintered stone, porcelain and ultra-compact surfaces may have different cutting characteristics.

The diamond specification can therefore be customized according to:

Material hardness

Material structure

Hole diameter

CNC machine

Spindle speed

Feed rate

Water cooling conditions

Required cutting speed

Required tool life

Production requirements

Our technical team can recommend a suitable diamond specification based on your material and application requirements.

OEM & Custom Manufacturing

We manufacture customized CNC diamond core bits according to customer requirements.

Available customization options include:

Diameter

1/2" GAS or M14 connection

Wall thickness

Continuous rim

Crown-tooth cutting head

Diamond specification

Diamond concentration

Bond formulation

Working length

Overall length

Shank configuration

Product color

Logo

Packaging

Private-label packaging

OEM branding

If you have an existing diamond core bit, drawing or sample, send it to us for evaluation.

We can manufacture a customized replacement or develop a new specification according to your CNC machine, material and application.

For Stone Tooling Distributors & Wholesalers

We supply CNC wet diamond core bits to international stone tooling distributors, wholesalers, importers, countertop tooling suppliers and professional stone fabrication companies.

Our manufacturing capability allows us to produce different diameters, connections, wall thicknesses and cutting-head designs according to specific market and application requirements.

OEM and private-label production are available for qualified distributors and importers.

Whether you need standard 3mm thin-wall core bits or customized approximately 2mm crown-tooth core bits, we can develop the appropriate specification for your application.

Why Choose Our CNC Diamond Core Bits?

• Specialized diamond tooling manufacturer
• Designed for CNC wet cutting applications
• Specifically developed for Dekton® and sintered stone
• Suitable for porcelain slabs and ultra-compact surfaces
• Approximately 3mm standard thin-wall design
• Approximately 2mm crown-tooth option
• Continuous rim cutting head available
• 1/2" GAS and M14 connections available
• Diameter range from 5mm to 300mm
• Customized diamond specifications
• OEM and private-label production
• Custom diameters and configurations
• Suitable for professional stone fabrication
• Flexible solutions for distributors and wholesalers

How to Choose the Right CNC Diamond Core Bit

• When selecting a CNC wet diamond core bit, please consider:
• Material to be drilled
• Required hole diameter
• CNC machine model
• Tool holder specification
• Connection type
• Required wall thickness
• Continuous rim or crown-tooth design
• Required working length
• Production volume
• Required cutting performance and tool life
• If you are unsure which specification is suitable, send us your CNC machine information, material and required hole size.
• Our technical team can recommend a suitable configuration for your application.

Frequently Asked Questions

What is a CNC wet diamond core drill bit for Dekton®?

A CNC wet diamond core drill bit for Dekton® is a diamond drilling tool designed to create accurate holes in Dekton®, sintered stone, porcelain slabs and other ultra-compact surfaces using a CNC stone fabrication machine with water cooling.

What materials can this CNC diamond core bit drill?

It is mainly designed for Dekton®, sintered stone, ultra-compact surfaces and porcelain slabs. Customized diamond specifications can also be developed for other hard and brittle engineered stone materials.

Is this core bit suitable for CNC machines?

Yes. This diamond core bit is specifically designed for CNC wet drilling and hole cutting applications.

What connections are available?

We can manufacture the CNC diamond core bit with either a 1/2" GAS thread or M14 connection.

What is the standard wall thickness?

The standard thin-wall version is approximately 3mm thick.

Can you make a 2mm thin-wall diamond core bit?

Yes. The crown-tooth version can be manufactured with a wall thickness down to approximately 2mm, depending on the diameter and application.

The 2mm version is more difficult to manufacture and normally has a higher production cost than the standard 3mm version.

What diameters are available?

Diameters from 5mm to 300mm can be manufactured.

Custom diameters are available according to customer drawings, samples or specifications.

Is the core bit designed for wet or dry drilling?

This product is designed primarily for CNC wet drilling and cutting applications.

Do you offer both continuous rim and crown-tooth designs?

Yes.

The continuous rim version is available as the standard cutting-head design.

The crown-tooth version is available for applications requiring an ultra-thin cutting profile, with wall thickness down to approximately 2mm.

Can you manufacture custom diameters?

Yes. We can manufacture custom diameters from 5mm to 300mm according to your requirements.

Can you manufacture OEM diamond core bits?

Yes. We provide OEM and customized CNC diamond core bits according to customer drawings, samples, machine specifications and application requirements.

Can you provide private-label diamond core bits?

Yes. OEM and private-label production are available, including customized product specifications, logos and packaging.

How do I choose between the 3mm and 2mm versions?

The approximately 3mm version provides a good balance between cutting efficiency, tool strength and manufacturing cost.

The approximately 2mm crown-tooth version is suitable when a thinner cutting profile and reduced material removal are required.

The 2mm version is more difficult to manufacture and normally has a higher cost.

How do I get a quotation?

Please send us the following information:

Required diameter

Material to be drilled

CNC machine model

Connection type: 1/2" GAS or M14

Required wall thickness

Continuous rim or crown-tooth

Required working length

Estimated quantity

OEM or private-label requirements

We will recommend a suitable specification and provide a quotation based on your requirements.

Contact Us

Looking for a CNC wet diamond core drill bit for Dekton®, sintered stone or porcelain slabs?

Send us your required diameter, material, CNC machine model and connection type.

We can provide customized CNC thin-wall diamond core bits with:

1/2" GAS or M14 connection

5mm–300mm diameters

Approximately 3mm standard thin wall

Approximately 2mm crown-tooth thin wall

Continuous rim cutting head

Customized diamond specifications

OEM and private-label production

Contact us today for product recommendations, samples and OEM quotations.
